Western Canoeing Footbrace Kit (black)

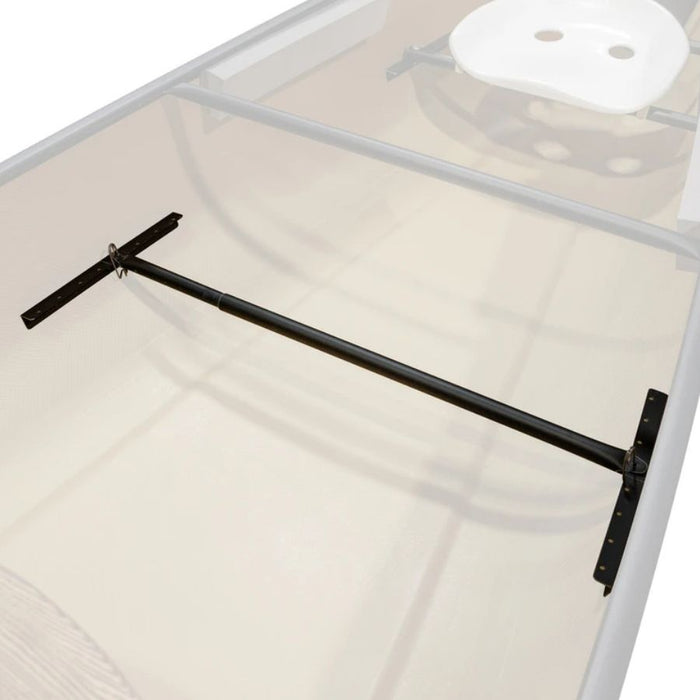

Black anodized aluminum footbrace and brackets to mount onto your canoe. This kit is easily added to any canoe to give the paddler extra leverage against their paddle stroke.

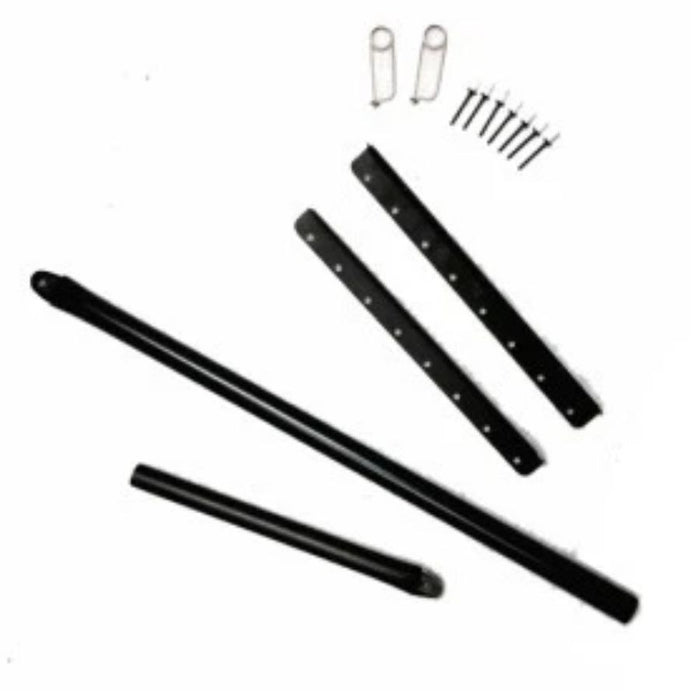

Kit Contents:
1X Telescoping footbrace bar
2X Footbrace Pins
2X Side Angle Brackets
6X Sealed Rivets

Tools Required:
Drill with 3/16” (11#) Drill bit
Pop Rivet Gun
Tape Measure
Pencil

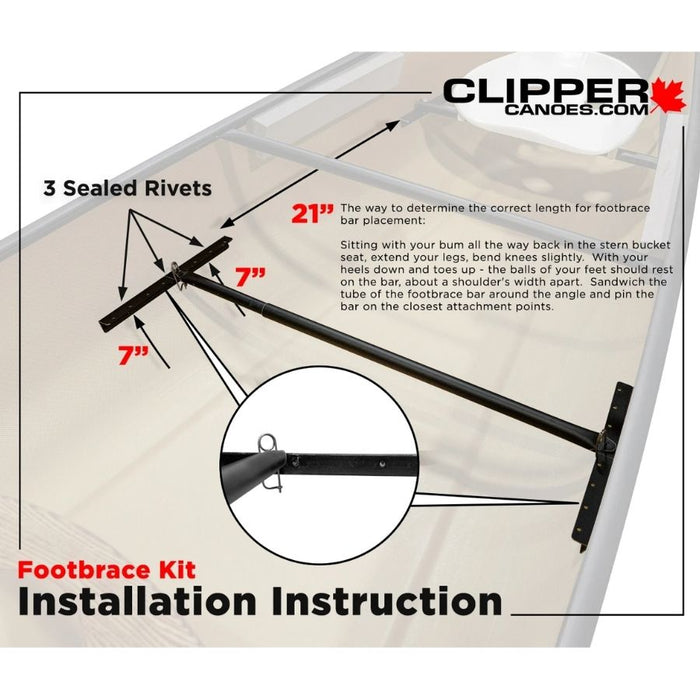

Instructions:
Place footbrace approximately 21” from the front of the stern seat angle. Measure 7” from the bottom of the canoe.
With a pencil, trace the three holes of the side angle brackets, onto the side of the canoe.
Pre-drill holes with 1/8” (11#) bit.
Pop rivet angle on the sealed rivets. Repeat for other side.
Install footbrace to fit the paddler’s legs.
